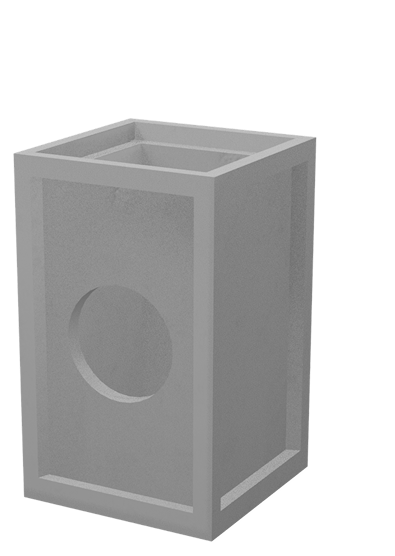

Precast Chamber
Factory-cast access chambers for stormwater, sewerage and utility networks, delivered ready for coordinated installation.
Access geometry first
Begin with the clear opening, working space and maintenance task. The chamber plan and depth must suit the people, tools and services that will use it.
- Clear opening
- Internal access
- Maintenance envelope
- Future service allowance
Every penetration is an interface
Pipe and cable entries should be fixed before casting wherever possible. Invert level, wall clearance and connection treatment drive the chamber configuration.
- Pipe diameter and invert
- Entry orientation
- Connector or seal detail
- Internal channel or benching
Cover and chamber work together
The cover, frame, rebate and surrounding pavement must be selected as one load-transfer assembly for the actual pedestrian, roadway or industrial location.
- Clear aperture
- Surface load condition
- Frame seating
- Access and locking
Line, level and support matter
A factory-accurate unit still requires stable bedding, controlled lifting, aligned service connections and suitable backfill compaction.
- Prepared formation
- Approved lifting points
- Connection checks
- Layered backfill
Drawing to dispatch
Freeze dimensions and penetrations before production, then coordinate casting, inspection, delivery order and crane access with the site programme.
- Approved GA
- Quantity schedule
- Dispatch sequence
- Site lifting plan
Loading product model
The interactive model could not load. The product reference remains available.
Applications
Where this product is considered.
Application cards describe typical use contexts, not automatic suitability. The project team must confirm geometry, loading, exposure, standards and interfaces for the actual location.
Stormwater inspection and junction points
Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.
Sewerage access and maintenance nodes
Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.
Electrical and communication utility routes
Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.
Industrial service yards
Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.
Campus and municipal networks
Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.
Pump, valve and service interfaces
Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

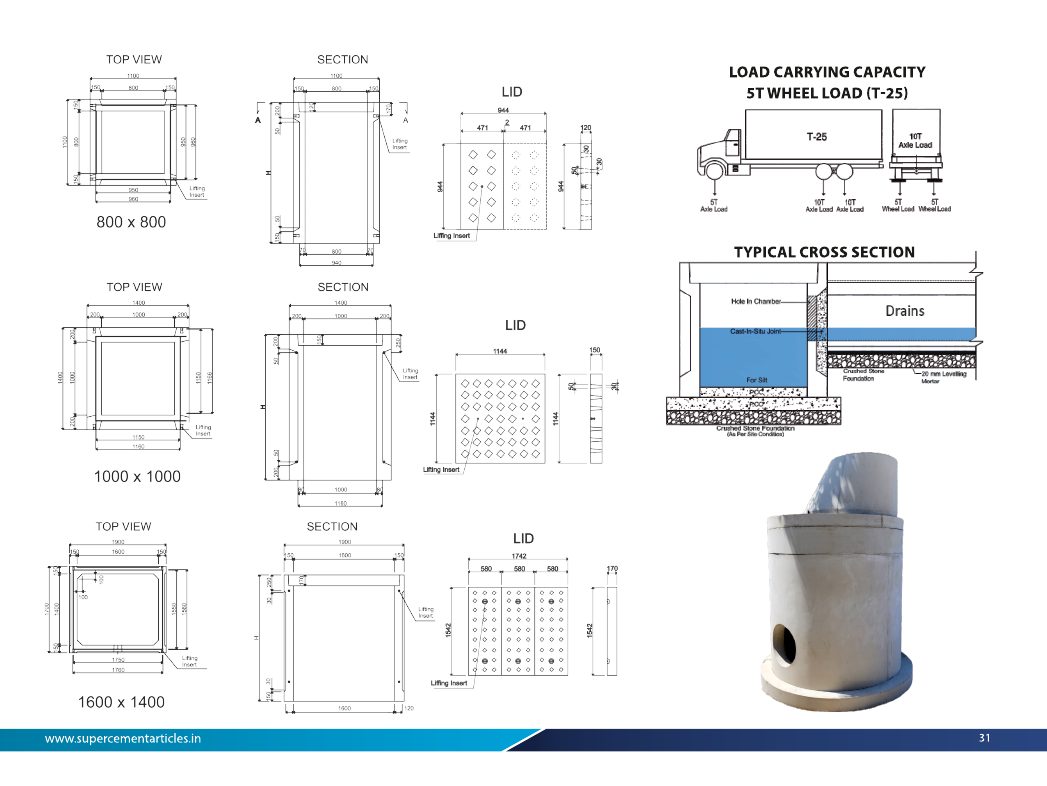

Catalogue evidence
Product imagery, drawings and schedules.
These supplied catalogue spreads are shown as references for product understanding. Click any panel to inspect it at full size. Approved project drawings remain the controlling documents.
Design inputs
Information to freeze before manufacture.
A precast chamber is not simply a concrete box. It is the access, connection and maintenance interface between buried services, covers, pipe penetrations, inverts and the surrounding pavement or landscape. Early coordination prevents site cutting, misaligned entries and unsuitable cover selection. The six inputs alongside form a practical pre-production checklist.
Clear opening and internal working space
Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.
Overall plan dimensions and chamber depth
Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.
Pipe diameter, invert and penetration positions
Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.
Cover, frame and surface loading condition
Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.
Joint, sealing and groundwater requirements
Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.
Bedding, backfill and surrounding pavement detail
Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.
Project workflow
From site information to installed unit.
Precast gains programme certainty when survey, design, production, logistics and erection are treated as one connected workflow rather than separate purchases.
Survey levels and existing utilities
Convert survey and technical inputs into an agreed basis.
Approve chamber GA and penetration schedule
Freeze the product geometry, interfaces and required checks.
Manufacture and inspect the precast unit
Complete factory production and documented inspection.
Prepare stable bed and lift into position
Coordinate safe delivery, lifting, line and level on site.
Connect services, fit cover and complete backfill
Close interfaces and retain the required handover records.
System value
Why factory-made geometry matters.
Controlled moulds and curing improve repeatability, while site teams concentrate on preparation, lifting, interfaces and safe completion. Final performance still depends on the complete engineered system.

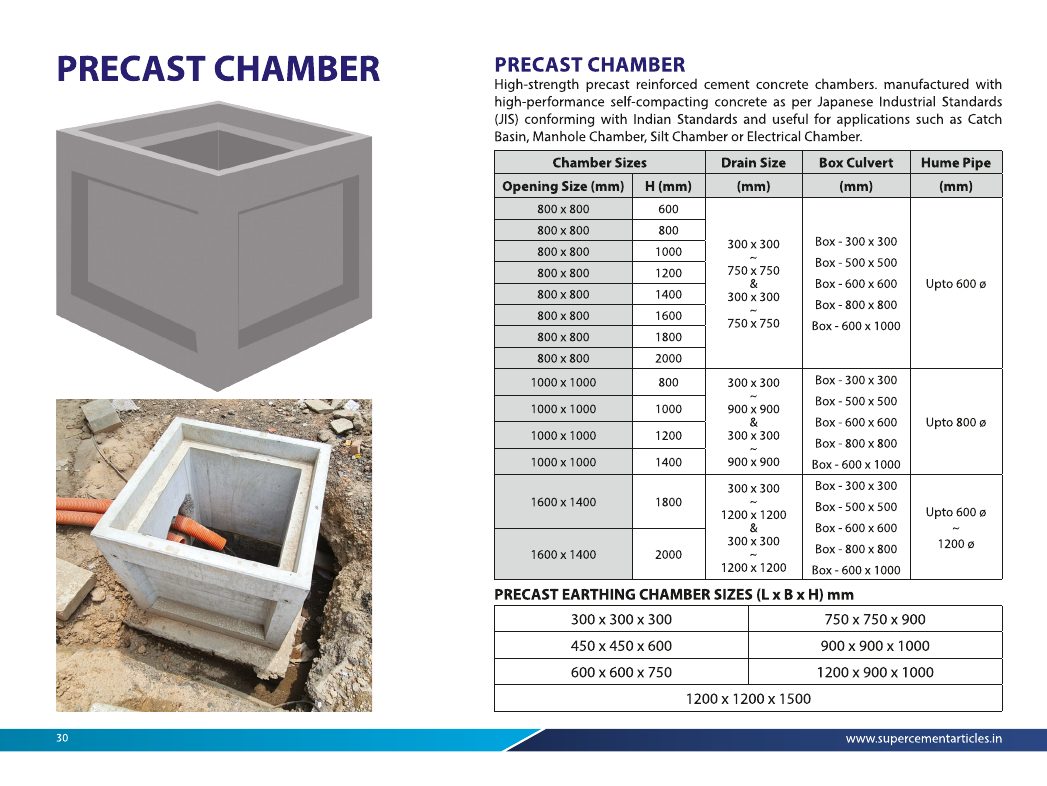

Catalogue opening range from 300 x 300 mm to 1500 x 1500 mm
A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.
Multiple plan and height combinations
A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.
Conical chamber options listed separately
A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.
Factory-formed wall and opening geometry
A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.
Frequently asked questions
Precast Chamber technical FAQs.
Twelve practical questions covering selection, engineering, production, handling, installation and documentation.
What chamber opening sizes are shown in the catalogue?
The catalogue lists opening families from 300 x 300 mm through 1500 x 1500 mm. The final overall size and depth must be confirmed for the selected opening and project details.
Can pipe penetrations be formed during manufacture?
They can be reviewed when the pipe diameter, location, invert and connector detail are frozen before production.
How is the cover selected?
Select the cover and frame from the clear opening, surface loading, access frequency and applicable authority requirement.
Can a chamber be made watertight?
Watertightness depends on the complete joint, penetration, base and cover system. The required performance and test method must be specified at design stage.
Can dimensions or details be customised?
Project-specific dimensions and interfaces can be reviewed before manufacture, subject to engineering, mould and production feasibility.
What is required for a technical quotation?
Share the latest drawings, quantities, application, levels, loading or hydraulic inputs, site location and required programme.
Is project engineering still required?
Yes. The GLB and catalogue explain the product; they do not replace the consultant-approved structural, geotechnical, hydraulic or electrical design.
Can production and dispatch be phased?
Yes, after the unit schedule and technical scope are frozen, manufacture and dispatch can be coordinated to the agreed workfront sequence.
How are units lifted and stored?
Use only approved lifting points, unit weights, equipment and method statements. Stable dunnage, stack height and ground conditions must be planned.
What quality records can be requested?
Applicable drawings, material records and inspection documentation can be discussed for the confirmed product and project scope.
Can existing infrastructure be connected?
Existing levels, dimensions, utilities and tolerances must be surveyed and incorporated into the approved interface details before manufacture.
Can the 3D model be used as a fabrication drawing?
No. The interactive model is for product understanding. Only the latest approved production and project drawings govern manufacture and installation.
Planning a project with Precast Chamber?
Share the drawings, quantities, site, loading or hydraulic inputs and programme for a product-specific technical discussion.
