Engineered retaining wall systems

Super Precast Retaining Wall

Large-format precast retaining elements for engineered grade separation, embankments and high-performance site edges.

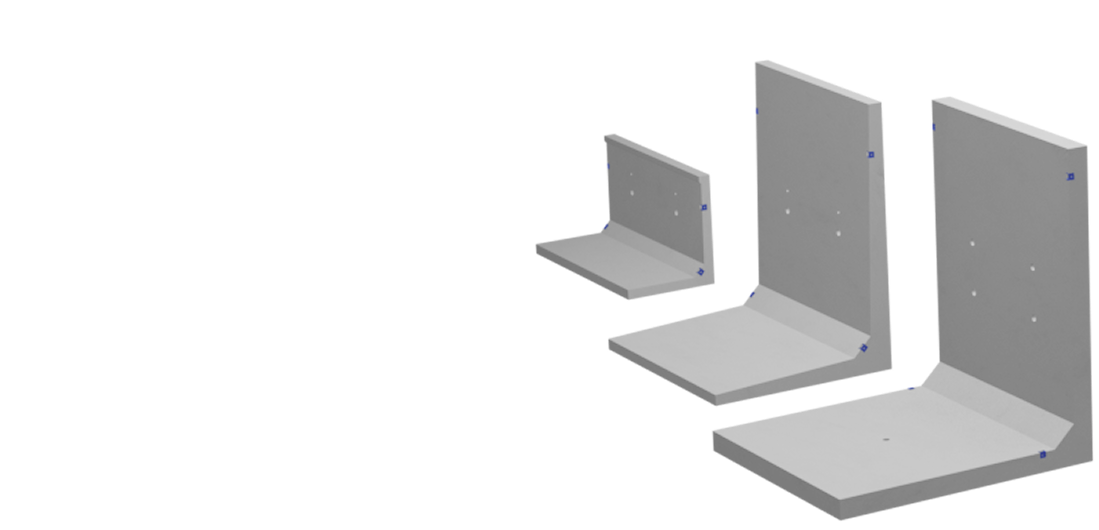

Interactive GLB modelCatalogue pages 32-33Drawing-led manufacture
01 / Read the geometry

Retained height sets the problem

Establish the full level difference, toe and heel space, wall alignment and nearby constraints before selecting a catalogue class.

  • Existing and proposed levels
  • Available base width
  • Alignment and corners
  • Adjacent structures
02 / Engineer the actions

Soil and surcharge drive the wall

Retaining walls require project-specific checks for lateral earth pressure, surcharge, groundwater and the supporting soil. Catalogue geometry is not a substitute for design.

  • Soil parameters
  • Traffic or storage surcharge
  • Water pressure
  • Seismic input where applicable
03 / Resolve the foundation

Stability starts below grade

Bearing, sliding, overturning and settlement depend on the prepared formation and foundation detail. Weak or variable ground may require an engineered improvement strategy.

  • Allowable bearing
  • Levelling and founding level
  • Drainage at the base
  • Settlement compatibility
04 / Install and backfill together

Sequence controls performance

Units are lifted, aligned and temporarily secured before drainage and approved backfill are placed in controlled stages.

  • Lifting study
  • Temporary stability
  • Drainage aggregate
  • Layered compaction
05 / Deliver as a system

Coordinate wall, soil and site

Freeze unit schedules, reinforcement, lifting points and delivery order only after the geotechnical and structural design is approved.

  • Unit mark schedule
  • Reinforcement drawings
  • Crane and access plan
  • Inspection hold points
Loading product model
Drag to orbit · buttons to zoom · page scroll stays active
01 / 05
Applications

Where this product is considered.

Application cards describe typical use contexts, not automatic suitability. The project team must confirm geometry, loading, exposure, standards and interfaces for the actual location.

01

Highway and approach embankments

Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

02

Industrial plot grade separation

Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

03

Rail and infrastructure corridors

Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

04

Service yards and loading areas

Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

05

Campus and development platforms

Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

06

Constrained cut-and-fill boundaries

Coordinate the product with adjoining construction, access, drainage, safety and the approved project details.

Catalogue evidence

Product imagery, drawings and schedules.

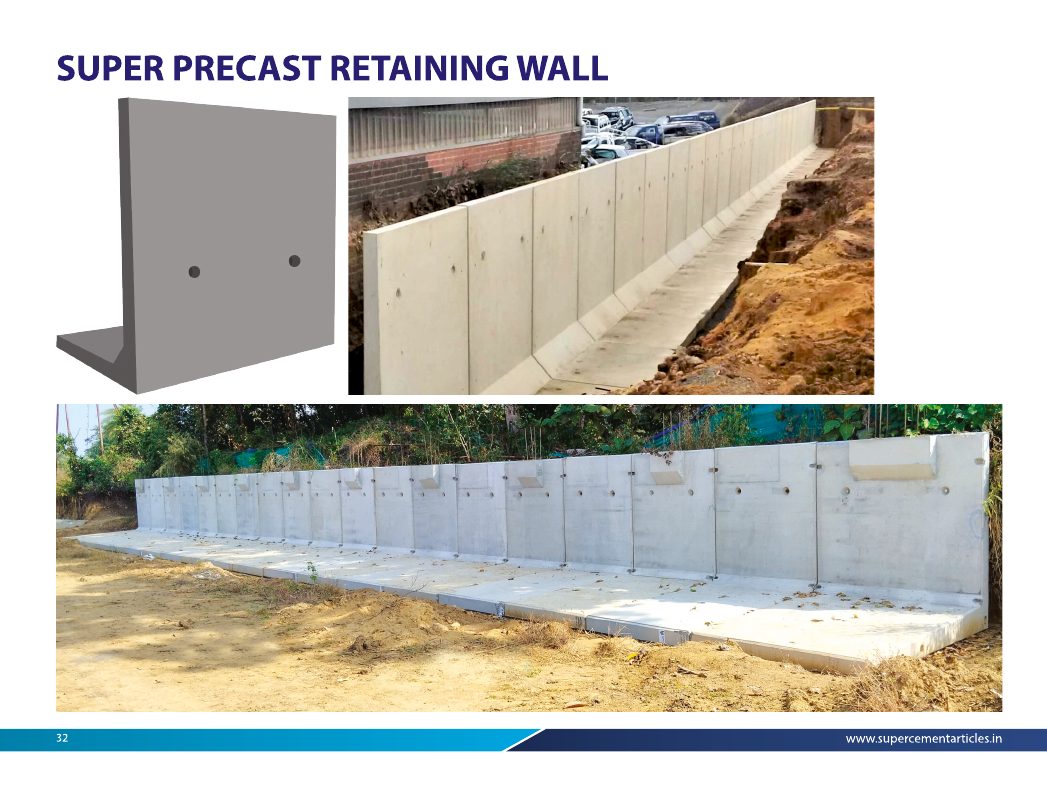

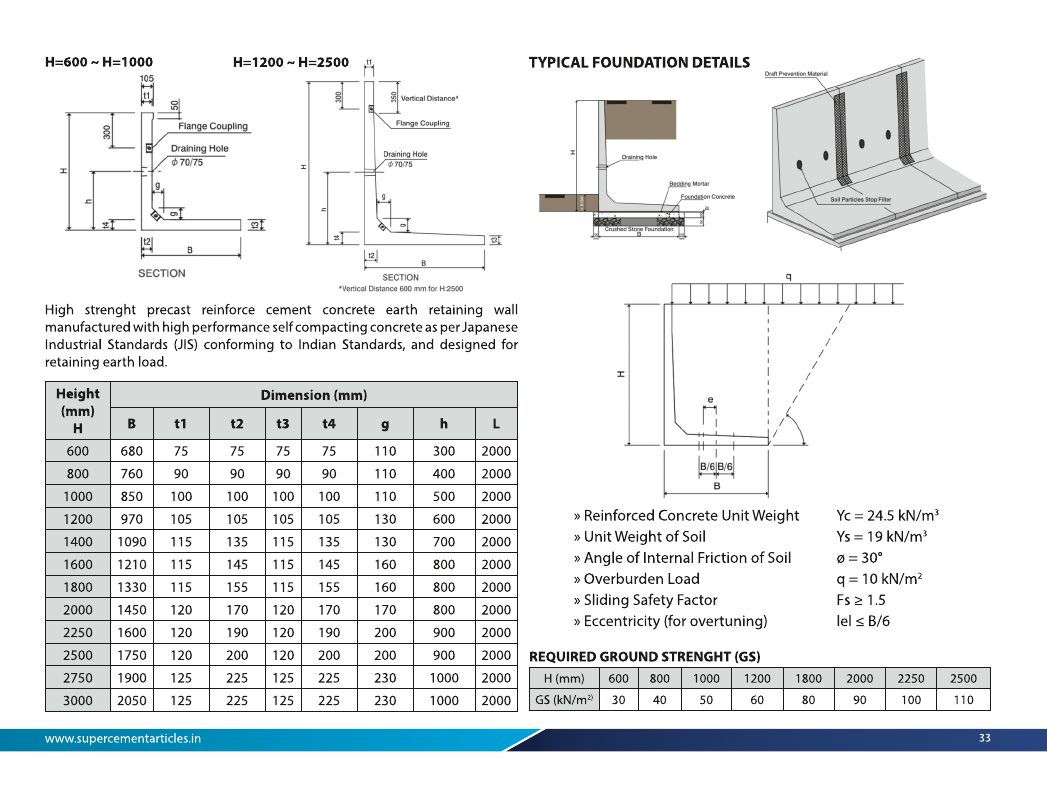

These supplied catalogue spreads are shown as references for product understanding. Click any panel to inspect it at full size. Approved project drawings remain the controlling documents.

Design inputs

Information to freeze before manufacture.

This large-format retaining system transfers earth and surcharge actions through a precast stem and base into the prepared foundation. The visible wall is only one part of the system: soil parameters, groundwater, drainage, bearing conditions, backfill and construction sequence govern its engineering. The six inputs alongside form a practical pre-production checklist.

Input 01

Retained height and finished levels

Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.

Input 02

Soil unit weight, friction and bearing capacity

Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.

Input 03

Traffic, storage and structural surcharge

Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.

Input 04

Groundwater and wall drainage strategy

Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.

Input 05

Sliding, overturning and bearing checks

Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.

Input 06

Seismic, corridor and adjacent-foundation effects

Record the requirement on the current approved drawing or schedule and coordinate it with affected disciplines.

Project workflow

From site information to installed unit.

Precast gains programme certainty when survey, design, production, logistics and erection are treated as one connected workflow rather than separate purchases.

01

Complete topographic and geotechnical inputs

Convert survey and technical inputs into an agreed basis.

02

Engineer the wall, foundation and drainage

Freeze the product geometry, interfaces and required checks.

03

Prepare and verify formation or levelling course

Complete factory production and documented inspection.

04

Lift, align, brace and connect wall units

Coordinate safe delivery, lifting, line and level on site.

05

Place drainage and controlled backfill in stages

Close interfaces and retain the required handover records.

System value

Why factory-made geometry matters.

Controlled moulds and curing improve repeatability, while site teams concentrate on preparation, lifting, interfaces and safe completion. Final performance still depends on the complete engineered system.

01

Catalogue illustrates 4 m and 5 m class configurations

A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.

02

Integrated precast stem-and-base geometry

A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.

03

Project-specific reinforcement and foundation design

A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.

04

Serial installation along prepared corridors

A catalogue-backed characteristic to evaluate against the project programme, design basis and installation method.

Frequently asked questions

Super Precast Retaining Wall technical FAQs.

Twelve practical questions covering selection, engineering, production, handling, installation and documentation.

Can catalogue wall height be adopted without design?

No. Catalogue classes are references. Retained height, surcharge, soil, water, bearing, sliding, overturning and foundation conditions require project-specific engineering.

What geotechnical information is required?

Provide soil profile, unit weight, strength parameters, allowable bearing, groundwater, settlement considerations and any seismic requirement.

Why is drainage behind the wall important?

Drainage limits unintended hydrostatic pressure and helps manage water entering the retained fill. The outlet and maintenance path must be detailed.

Can traffic run close to the wall?

Only when the traffic surcharge, barrier loads and distance from the wall are included in the approved structural and geotechnical design.

Can dimensions or details be customised?

Project-specific dimensions and interfaces can be reviewed before manufacture, subject to engineering, mould and production feasibility.

What is required for a technical quotation?

Share the latest drawings, quantities, application, levels, loading or hydraulic inputs, site location and required programme.

Is project engineering still required?

Yes. The GLB and catalogue explain the product; they do not replace the consultant-approved structural, geotechnical, hydraulic or electrical design.

Can production and dispatch be phased?

Yes, after the unit schedule and technical scope are frozen, manufacture and dispatch can be coordinated to the agreed workfront sequence.

How are units lifted and stored?

Use only approved lifting points, unit weights, equipment and method statements. Stable dunnage, stack height and ground conditions must be planned.

What quality records can be requested?

Applicable drawings, material records and inspection documentation can be discussed for the confirmed product and project scope.

Can existing infrastructure be connected?

Existing levels, dimensions, utilities and tolerances must be surveyed and incorporated into the approved interface details before manufacture.

Can the 3D model be used as a fabrication drawing?

No. The interactive model is for product understanding. Only the latest approved production and project drawings govern manufacture and installation.

Planning a project with Super Precast Retaining Wall?

Share the drawings, quantities, site, loading or hydraulic inputs and programme for a product-specific technical discussion.

Start an enquiry
Catalogue reference
